The PF1D Module and Camera range

Time-Tagging SPAD Arrays

PF1D Modules and Cameras are 1D linear arrays of Time-Correlated Single-Photon Counting (TCSPC) macropixels, with fully digital photon counting and time stamping – meaning no analogue readout noise.

In-pixel timing electronics enable the time-tagging of incoming photons to an accuracy of 140ps. An incredible throughput of up to a billion timestamps per second can be captured, with an IRF of down to 300ps FWHM.

PF1D Cameras and Modules share the following specs:

140ps
Resolution

1024 x 16
TCSPC pixel array

16-bit
TDC time stamping

13-bit
Photon counting

300ps FWHM
Instrument response function

World’s highest resolution 1D linear SPAD array

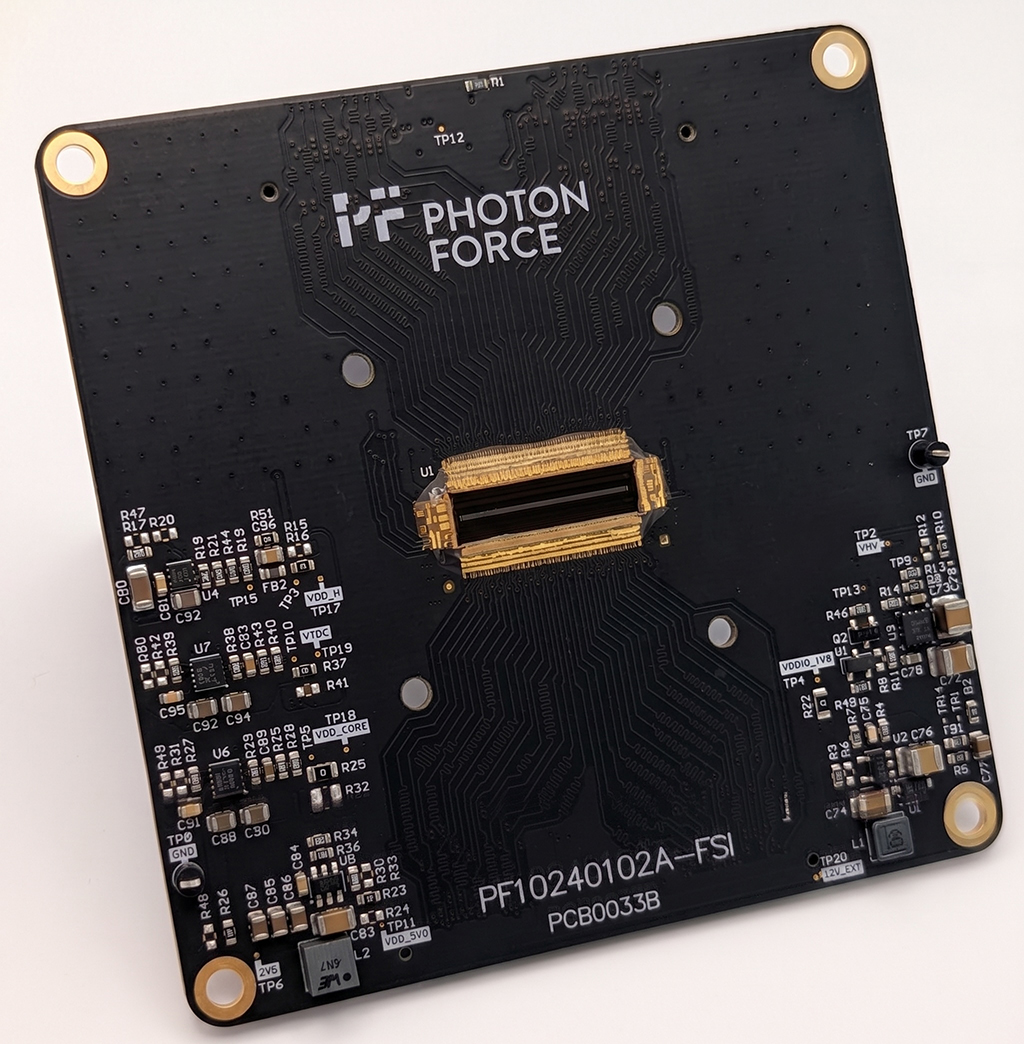

PF1D-1024

Choose the PF1D-1024

With the world’s highest resolution linear SPAD array, ultra-low dark count rates and superb PDE, the PF1D-1024 is ideal for numerous applications

Our high speed time-correlated single-photon counting linear array offers close to 1Mfps throughput.

The PF1D comes with the necessary cables and accessories to get you up and running in no time, along with dedicated Python and Matlab wrappers for software integration

Please click here to view the spec sheet.

Want to talk more about the capabilities of the PF1D linear array?
